(Helps in Learning of real time closed loop control applications)

C2000 MCU Real-time control microcontrollers bring the power of a digital signal processor into a microcontroller architecture. These differentiated solutions are designed for developers looking to solve tough control loop tasks without compromising on performance. Based on the industry recognized C28x CPU, C2000 MCU Real-time control microcontrollers enable easy scalability between the Piccolo™ low-cost platform and the Delfino™ high-performance devices while making minimal changes to your software. C2000 MCU Real-time control microcontrollers are differentiating control-based applications such as digital power, industrial drives, solar inverters, appliances, automotive and much more.

Launch Pads

C2000 Launch Pad (F28027/F28027F)

The C2000™ Piccolo Launch Pad is an inexpensive, modular, and fun evaluation platform, enabling you to dive into real-time, closed-loop control development with Texas Instruments’ C2000™ 32-bit microcontroller family.

This platform provides a great starting point for development of many common power electronics applications, including motor control, digital power supplies, solar inverters, digital LED lighting, precision sensing, and more.

To view all available C2000 Launch Pads and Booster Packs, visit the C2000 Launch Pad site.

Features:

  • Pre-programmed C2000 Piccolo F28027 MCU
  • Built in isolated XDS100 JTAG Emulator enables real-time in-system programming and debugging via USB
  • CPU reset button and programmable push button
  • Enables development on any Piccolo F2802x device
  • Free unrestricted version of Code Composer Studio integrated development environment (IDE)
  • Free download of controlSUITE™ software with examples, libraries, application software and more

What's Included..?

  • C2000 Piccolo Launch Pad Evaluation Board (LAUNCHXL-F28027)
  • Mini USB Cable
  • Quick Start Guide

Supported IDEs :

CCS / ENERGIA / MATLAB / VISSIM Embedded Coder Developer

Other Softwares :

ControlSuite / MotorWare / PowerSuite and More...

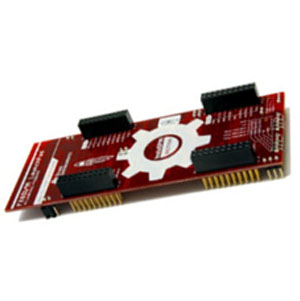

C2000 Launch Pad (F28069-M)

The C2000™ Piccolo Launch Pad is an inexpensive, modular, and fun evaluation platform, enabling you to dive into real-time, closed-loop control development with Texas Instruments’ C2000™ 32-bit microcontroller family.

The InstaSPINTM MOTION (and InstaSPIN-FOC) enabled C2000™ Piccolo LaunchPad is an inexpensive evaluation platform designed to help you leap right into the world of motor control. The LaunchPad is based on the Piccolo TMS320F28069M with unique features such as 256KB of on board flash, 12bit ADC, I2C, SPI, UART, CAN,

Features:

  • C2000 Piccolo F28069M MCU with InstaSPIN™-MOTION and InstaSPIN-FOC technology
  • Built in isolated XDS100v2 JTAG Emulator enables real-time in-system programming and debugging via USB
  • Hardware supports two BoosterPacks and dual Encoder feedback
  • Free unrestricted version of Code Composer Studio™ integrated development environment (IDE)
  • Free download of MotorWare™ software with drivers, modules, and InstaSPIN projects that work with various BoosterPacks.
  • Free GUI to instrument software built in Motorware™ GUI

What's Included..?

  • InstaSPIN™ enabled C2000 Piccolo LaunchPad Evaluation Board (LAUNCHXL-F28069M)
  • Mini USB Cable
  • Quick Start Guide

Supported IDEs :

CCS / ENERGIA / MATLAB / VISSIM Embedded Coder Developer

Other Softwares :

ControlSuite / MotorWare / PowerSuite and More...

F28379D Launch Pad

LAUNCHXL-F28379D is a low cost evaluation and development tool for the F2837xD, F2837xS, and F2807x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks (suggested under the Recommended BoosterPacks in the Features section below). This extended version of the LaunchPad supports the connection of two BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Hardware Features

  • USB connected isolated XDS100v2 JTAG debug probe for real-time debug and flash programming
  • 4x 20-pin headers/connectors
  • Programmable buttons and LEDs
  • TMS320F28379D: 200 MHz dual C28xCPUs and dual CLAs, 1 MB Flash, 16-bit/12-bit ADCs, comparators, 12-bit DACs, delta-sigma sinc filters, HRPWMs, eCAPs, eQEPs, CANs, and more
  • C2000 Delfino Position Manager-ready TMS320F28379D MCU capable of interfacing to absolute encoders as well as resolvers and SINCOS transducers
  • Supports two BoosterPacks
  • Two encoder interface connectors
  • Isolated CAN transceiver connector

Software features

  • Free download of Code Composer Studio IDE
  • Free download of C2000Ware for device drivers and example projects
    • DesignDRIVE platform support
    • powerSUITE software support
  • MathWorks Embedded Target Support
  • solidThinking Embed Support

Experimenter Kits

This C2000 Experimenter Kit is based around the C2000 Delfino™ TMS320F28335 MCU , which features a 150 MIPS processing core with floating point support, 512 KB integrated flash, 18 PWM channels with high resolution capability, 12-bit 12.5 MSPS ADC, capture interfaces, QEP interfaces, serial connectivity, and more.

The C2000 Experimenter Kit board hardware includes an isolated XDS100 JTAG emulator facilitating easy programming and debugging, header pins access to key microcontroller signals, breadboard area for customizable routing, DIMM100 controlCARD plug-in slot, included controlCARD based on the C2000 Delfino TMS320F28335 microcontroller, and more.

Features

  • F28335 MCU with onboard XDS100
  • Header Pin Access to key MCU Signals
  • Breadboard area for Custom Application development
  • Jumper-based boot mode selection
  • Docking station with on board USB JTAG emulation
  • Modular controlCARD slot, allowing easy interchange of the MCU

What's Included..?

  • C2000 Experimenters Base Board
  • F28335 controlCARD
  • USB Cable for JTAG Emulation
  • Universal AC Adaptor
  • Quick Start Guide and Manual

Supported IDEs :

CCS / MATLAB / VISSIM Embedded Coder Developer

Other Softwares :

ControlSuite / MotorWare / PowerSuite and More...

TMS320F28335 ezDSP Starter Kit

The F28335 eZdsp starter kit is a complete software development platform for the TMS320F2833x series of floating-point Digital Signal Controllers. The eZdsp kit includes an F28335 target board that features integrated JTAG emulation, 128Kx16 asynchronous SRAM, CAN 2.0 and RS-232 interfaces, and expansion headers that provide access to all F28335 I/O signals. Also included in the kit is the Code Composer Studio™ Integrated Development Environment, USB interface to the host PC, and a universal power supply. This single orderable part number supports all regions of the world.

Features

  • TMS320F28335 Floating-Point Digital Signal Controller
  • 150 MHz operation
  • 512 KB on-chip flash memory
  • 68 KB on-chip RAM
  • 12-bit ADC with 16 input channels
  • 128k x 16 off-chip SRAM
  • Clamshell socket for the F28335 DSC
  • RS-232 interface with on-board transceiver and 9-pin DSUB connector
  • CAN interface with on-board transceiver and 9-pin DSUB connector
  • Multiple expansion connectors provide access to all F28335 I/O signals
  • Embedded USB JTAG Controller
  • Operates from a single 5V supply with provided AC adapter
  • IEEE 1149.1 JTAG emulation connector

What's Included..?

  • C2000 Peripheral Explorer Base Board
  • F28335 IC
  • USB Cable for JTAG Emulation
  • Universal Power Supply
  • Quick Start Guide and Manual

Supported IDEs :

CCS / MATLAB / VISSIM Embedded Coder Developer

Other Softwares :

ControlSuite / MotorWare / PowerSuite and More...

Application Kits

High Voltage Motor Control and PFC Developers Kit

The High Voltage Motor Control and PFC Developer’s Kit provides a great reference platform to learn and experiment with digital control of high voltage motors with Texas Instruments’ C2000™ 32-bit microcontroller family.

The board includes an AC rectifier stage, a two-phase interleaved power factor correction (PFC) stage, a 3-phase motor inverter stage, isolated CAN and SCI connectivity, PWM DAC’s for oscilloscope monitoring of system variables, and a controlCARD DIMM100 slot with included controlCARDs based on the C2000 Piccolo TMS320F28035 MCU and the C2000 Delfino TMS320F28335 MCU. Motors are sold separately.

The 3-phase inverter stage is capable of sensorless and sensored field oriented control of high voltage ACI and PMSM motors, or trapezoidal and sinusoidal control of high voltage BLDC motors.

Features

  • Support for three brushless motor types, AC Induction, Permanent Magnet Synchronous Motor, Brushless DC Motor
  • Can be used by both Piccolo and Delfino F2833x devices
  • 1.5 KiloWatt motor driver stage
  • 750W power factor correction stage
  • Full source software for power factor correction stage
  • Full source software for control of all three motor types
  • Library based software for latest software observer and high frequency injection initial position detection techniques
  • Piccolo F28035 and Delfino F28335 controlCARD
  • Full source hardware, including schematics, BOM, and gerber files
  • Motors of each type available directly from TI.

What's Included..?

  • F28035 and F28335 controlCARDs
  • High Voltage DMC board with slot for the controlCARD
  • 15V DC Power Supply
  • AC power Cord, Banana Plug Cord, USB Cable
  • CCS4 CD & USB Stick with Quick Start GUI and Guide documentation

Supported IDEs :

CCS / MATLAB / VISSIM Embedded Coder Developer

Other Softwares :

ControlSuite / MotorWare / PowerSuite and More...

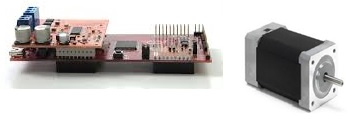

F280xx Based BLDC Motor Control Kit

F280xx Motor control kit is a low cost evaluation and development tool for the F280xx series as well as the Insta SPIN-FOC (F2802x) and Insta SPIN-MOTION (F2806x). This extended version supports the connection of plug-on. The DRV8301 is 10A, 3-phase brushless DC drive stage based on the DRV8301 pre-driver and CSD18533Q5A NexFET™ power MOSFET. The module has 3x low side current sense amps. The module also has a 1.5A step down buck converter, is fully protected with short circuit, thermal, and shoot-through protection, and is easily configured via a SPI interface. This kit is ideal for those wishing to learn about sensor less brushless control techniques and drive stage design.

Features

  • TMS320F280xx: 90 MHz C28x CPU, 256 KB Flash, Insta SPIN-FOC (F2802x) and Insta SPIN-MOTION (F2806x) enabled, 12-bit ADC, CAN, 2x encoder interface (e QEP), UART, SPI, and more
  • Two encoder interface connectors
  • Isolated CAN transceiver connector
  • 6 to 24V supply input
  • Supports up to 14A peak, 10A continuous current output
  • Supports voltage and current feedback for Insta SPIN-FOC (F2806x) sensor less control solution

Three Phase BLDC Motor Control Kit with DRV8312 and Piccolo MCU

The DRV8312-C2-KIT is a motor control evaluation kit for spinning three-phase brushless DC (BLDC) and brushless AC (BLAC) - often referred to as permanent magnet synchronous (PMSM) - motors. The DRV8312-C2-KIT is a high-performance, power-efficient, cost-effective sensorless field-oriented control (FOC) and sensored/sensorless trapezoidal commutation platform that speeds development for quicker time to market. Applications include sub-50-V and 7-A brushless motors for driving medical pumps, gates, lifts and small pumps, as well as industrial and consumer robotics and automation.

Features

  • DRV8312 three phase inverter integrated power module base board supporting up to 50V and 6.5A with controlCARD interface
  • C2000 Piccolo F28035 controlCARD (pre-flashed with code to spin all motors using GUI)-
  • Isolated XDS100 Emulation, UART, SPI, CAN Connectivity-
  • 1 BLDC/BLAC NEMA17 55W Motor-
  • 24 V power supply-
  • USB Cable- USB Stick with Quick Start GUI

What's Included..?

  • 1 NEMA17 BLDC/PMSM 55W Motor
  • 24V wall power supply (with adapters)
  • DRV8312 baseboard with controlCARD slot
  • Piccolo Isolated F28035 controlCARD
  • USB Cable, USB Stick with GUI, CCStudie IDE, Quick Start Guide, and link to controlSUITE for all

Supported IDEs:

CCS / MATLAB / VISSIM Embedded Coder Developer

Other Softwares :

ControlSuite / MotorWare / PowerSuite and More...
