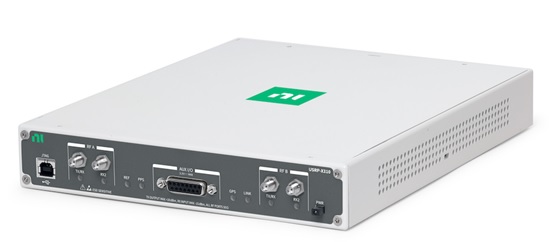

The NI Ettus USRP X310 is a high-performance, scalable software-defined radio (SDR) platform for designing and deploying next-generation wireless communications systems. The hardware architecture combines two extended-bandwidth daughterboard slots covering DC – 6 GHz with up to 160 MHz of baseband bandwidth, multiple high-speed interface options (PCIe, dual 10 GigE, dual 1 GigE), and a large user-programmable Kintex-7 FPGA in a convenient desktop or rack-mountable half-wide 1U form factor. In addition to providing best-in-class hardware performance, the open source software architecture of X310 provides cross-platform UHD driver support making it compatible with a large number of supported development frameworks, reference architectures, and open source projects.
Features
- Two wide-bandwidth RF daughterboard slots
- Up to 160MHz bandwidth each (UBX or TwinRX)
- Daughterboard selection covers DC to 6 GHz
- Large customizable AMD Kintex-7 FPGA for high-performance DSP (XC7K410T)
- Multiple high-speed interfaces
- Dual 10 Gigabit Ethernet – 2x RX at 200 MSPs per channel
- Dual 10 Gigabit Ethernet – 4x RX at 80 MSPs per channel
- PCIe Express (Desktop) – 200 MS/s Full Duplex
- ExpressCard (Laptop) – 50 MS/s Full Duplex
- Dual 1 Gigabit Ethernet – 25 MS/s Full Duplex
- UHD architecture provides compatibility with:
- GNU Radio
- C++/Python API
- Amarisoft LTE 100
- OpenBTS
- Other third-party software and frameworks
- Flexible clocking architecture
- Configurable sample rate
- Optional GPS-disciplined OCXO
- Coherent operation with OctoClock and OctoClock-G
- Compact and rugged half-wide 1U form factor for convenient desktop or rack mount usage
- Digital I/O accessible on the front panel for custom control and interfacing from the FPGA
