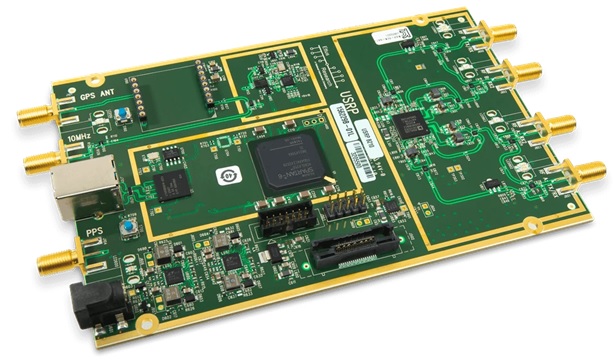

The USRP provides a fully integrated, single-board, Universal Software Radio Peripheral (USRP™) platform with continuous frequency coverage from 70 MHz – 6 GHz. Designed for low-cost experimentation, it combines the AD9361 RFIC direct-conversion transceiver providing up to 56MHz of real-time bandwidth, an open and reprogrammable Spartan-6 FPGA, and fast SuperSpeed USB 3.0 connectivity. Full support for the USRP Hardware Driver™ (UHD) software allows you to immediately begin developing with GNU Radio, prototype your own GSM base station with OpenBTS, and seamless transition code from the USRP B210 to higher performance, industry-ready USRP platforms. An enclosure accessory kit is available to users of green PCB devices (revision 6 or later) to assemble a protective steel case.
Specifications for USRP B200 and B210
- Frequency Range: 70 MHz to 6 GHz
- RF Channels:
- B200: 1 TX / 1 RX (Half or Full Duplex)
- B210: 2 TX / 2 RX (Fully coherent MIMO)
- Instantaneous Bandwidth: Up to 56 MHz (1x1 mode), up to 30.72 MHz (2x2 mode on B210)
- ADC/DAC Sample Rate: 61.44 MS/s, 12-bit
- FPGA:
- B200: Xilinx Spartan 6 XC6SLX75
- B210: Xilinx Spartan 6 XC6SLX150
- Interface: USB 3.0 SuperSpeed
- Power: USB Bus-powered (B200) or 5V External DC Supply (included with B210)
- Synchronization: 10 MHz clock reference and PPS time reference
- Supported Software: UHD, GNU Radio, OpenBTS
RF Performance
- Receive Noise Figure: <8 dB
- Receive Gain: 76 dB
- Transmit Gain: 89.8 dB
