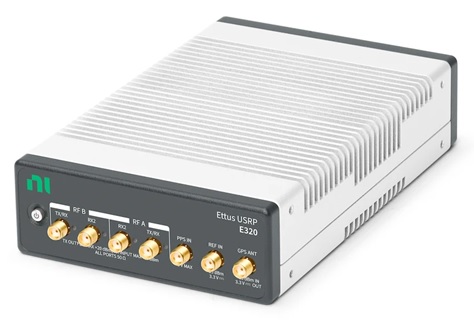

The USRP E320 brings performance to embedded software defined radios by offering four times more FPGA resources. The USRP E320 also introduces improvements in streaming, synchronization, integration, fault-recovery, and remote management capability. This field deployable SDR continues to use the flexible 2×2 MIMO AD9361 transceiver from Analog Devices, which covers frequencies from 70 MHz – 6 GHz and provides up to 56 MHz of instantaneous bandwidth.
Features
- Passive cooling enclosure
- Remote management capability
- Stand-alone (embedded) or host-based (network streaming) operation
- Wide frequency range: 70 MHz to 6 GHz
- Up to 56 MHz of instantaneous bandwidth
- RX, TX filter bank
- AMD Zynq-7045 SoC
- Dual-core ARM Cortex-A9 800 MHz CPU with 1 GB DDR3 RAM
- 7 Series FPGA with 2 GB DDR3 RAM
- 1 SFP+ port (1 Gigabit Ethernet, 10 Gigabit Ethernet, Aurora)
- 1 RJ45 port (1 GbE)
- Clock reference
- PPS time reference
- Built-in GPSDO
- 1 Type A USB host port
- 1 micro-USB port (serial console, JTAG)
- Trusted Platform Module v1.2 [1]
- Watchdog timer
- OpenEmbedded Linux
- USRP Hardware Driver™ (UHD) open-source software API version 3.14.0 or later
- RF Network on Chip (RFNoC™) FPGA development framework
- AMD Vivado 2017.4 Design Suite (license not included)
- GNU Radio support maintained by NI Ettus through GR-UHD, an interface to UHD distributed by GNU Radio
